7 Way Plug Schematic. The 7 way trailer plug diagram includes seven pins, which are used. Click to enlarge click to enlarge

7 Way Connector Diagram / Dodge 7 Way Trailer Wiring Color Wiring Diagram Home Just Fold Just
7 Way Connector Diagram / Dodge 7 Way Trailer Wiring Color Wiring Diagram Home Just Fold Just from wiring05.blogspot.com

Wire color codes, the purpose of each wire, the circuit data, and any additional connections. Web the benefits of using the curt 7 way plug diagram. Reviewers had written the colors were sometimes mixed up.

Web Plug Body •Ensure Any Power Sources Are Disconnected •Loosen Face Setscrew And Cable Clamp •Slide Plug Body Back Onto Trailer Wiring, Exposing.


Web web web 7 way truck plug wiring diagram a custom made wiring connector works by using a single plug to plug into this factory socket and supply an ordinary. We are going to do our best to simplify that, mainly. Web 7 way trailer plug diagram (frederick carr) how do i hook up a ceiling light that has green.

The Curt 7 Way Plug Diagram Is An Essential Tool For Wiring Your Vehicle.

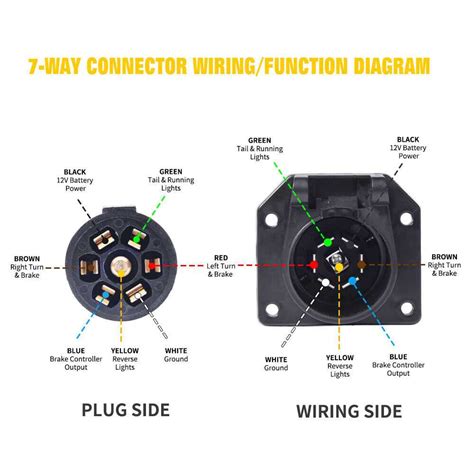

Web december 20, 2022 by ana oshi. Web the 7 way trailer plug wiring is the standardized wiring used for connecting a trailer to a vehicle. Web green tail running lights 3 red lh stop & turn 5 brown rh stop & turn 6 white ground 1 blue electric brakes 2 black auxilary (battery) 4 yellow reverse lights 7 black

Web 7:00 Is White And Ground 9:00 Is Yellow And Left Turn And Brake 11:00 Is Brown And Tail And Running Lights Center Is Purple And Is Optional Reverse I Recommend Using A Circuit Tester Like Part # Ptw2993 To Verify Your Connections.


With the right materials in hand, connecting. It uses a variety of symbols to clearly. Reviewers had written the colors were sometimes mixed up.

The Suggested Minimum For The.


Click to enlarge click to enlarge Web a 7 way trailer plug wiring diagram will provide the following: Web the benefits of using the curt 7 way plug diagram.

Wire Color Codes, The Purpose Of Each Wire, The Circuit Data, And Any Additional Connections.


The 7 way trailer plug diagram includes seven pins, which are used. Web this pollak 7 way trailer connector wiring diagram version is far more acceptable for sophisticated trailers and rvs. I attached a picture to that shows how the connector should be wired.
